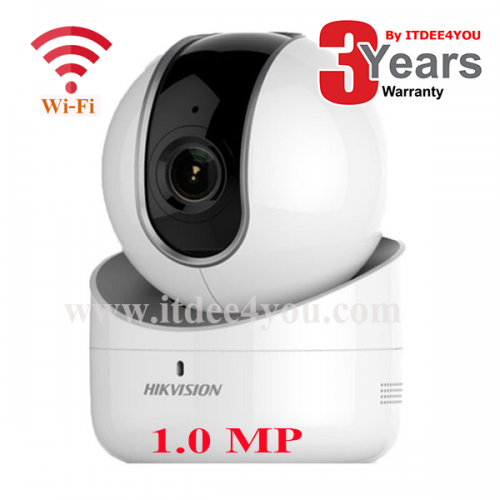

Up to 1.0 megapixel high resolution
Two video streams
2.8mm fixed lens
Digital Wide Dynamic Range
3D Digital Noise Reduction
Build-in microphone and speaker, support two-way audio
Support on-board storage, up to 128GB
Up to 5 m IR range
Built-in Wi-Fi
DC 5V ± 10 %, micro USB
| Camera | ||
|---|---|---|
| Image Sensor: | 1/4" progressive scan CMOS | |
| Min. Illumination: | 0.02Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8mm, horizontal field of view 92° | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264 | |
| H.264 code profile: | Baseline Profile/Main Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1280 × 720 | |
| Main Stream: | 50Hz: 25fps (1280 × 720) 60Hz: 30fps (1280 × 720) | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| BLC: | Yes, zone configurable | |
| ROI: | Support 1 fixed region for each stream | |
| Day/Night Switch: | Support auto/scheduled | |
| Network | ||
|---|---|---|
| Alarm Trigger: | Video tampering, alarm input, alarm output, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x | |
| Interface | ||
|---|---|---|
| Audio: | ||
